RICOH Options D541 ARDF-DF3050 Parts Catalog PDF download

The RICOH Options D541 ARDF / DF3050 is an automatic document feeder (ADF) option for Ricoh office equipment. This parts catalog PDF is the technician's reference for keeping the D541/DF3050 running reliably — from simple maintenance to full disassembly and fault repair. The document page previews below are taken directly from the manual.

What's inside this manual:

• How to repair / fix the RICOH Options D541 ARDF-DF3050
• Operating principles and overall unit construction
• Step-by-step disassembly & reassembly procedures
• Parts catalog listings with part numbers
• Error codes, fault isolation & troubleshooting
• Electronics / connector summary for electrical checks

Document details:

• Model: RICOH Options D541 ARDF / DF3050
• Document type: Parts catalog / service manual
• Format: PDF (high-definition, print-ready)
• Edition: 201101

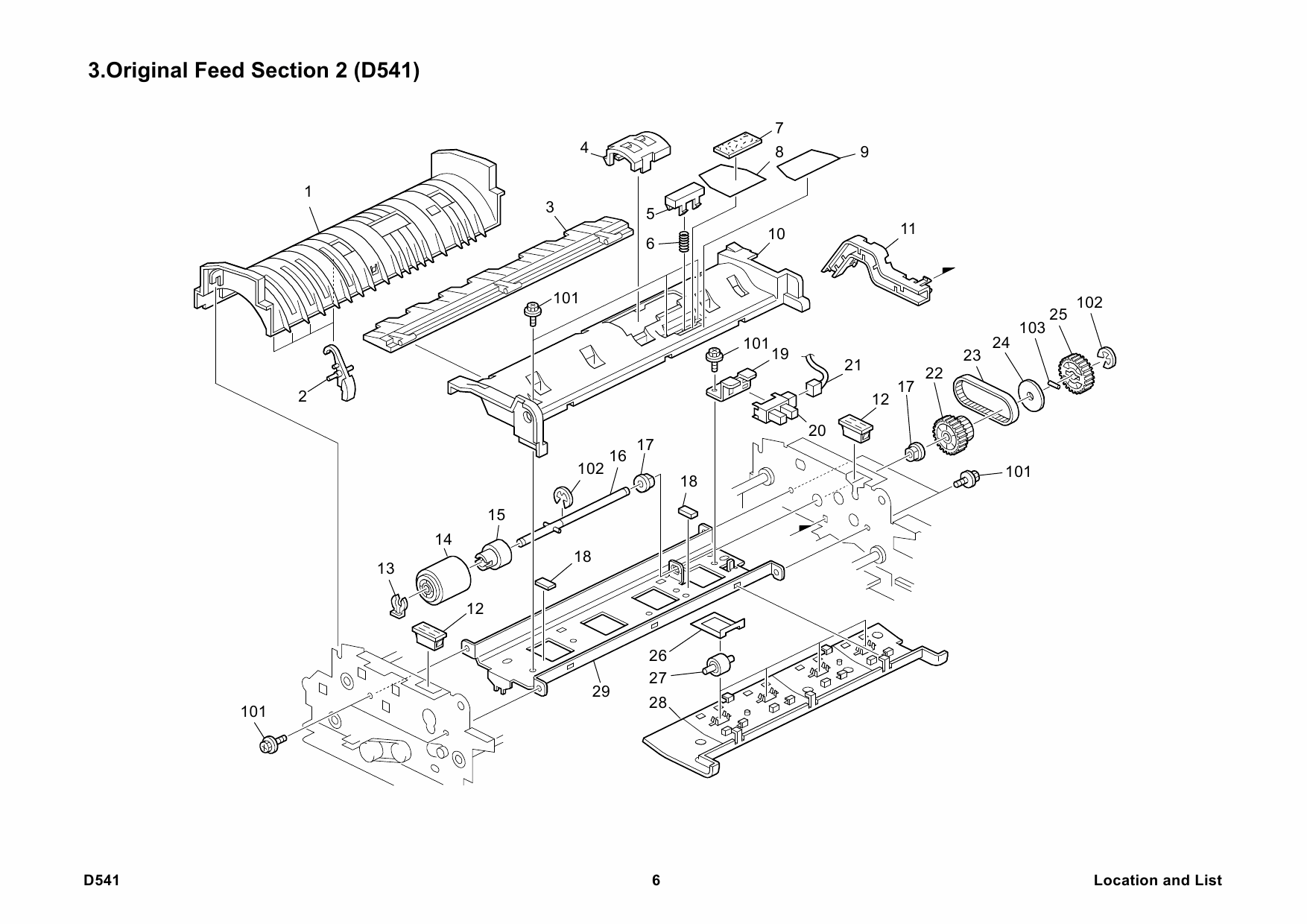

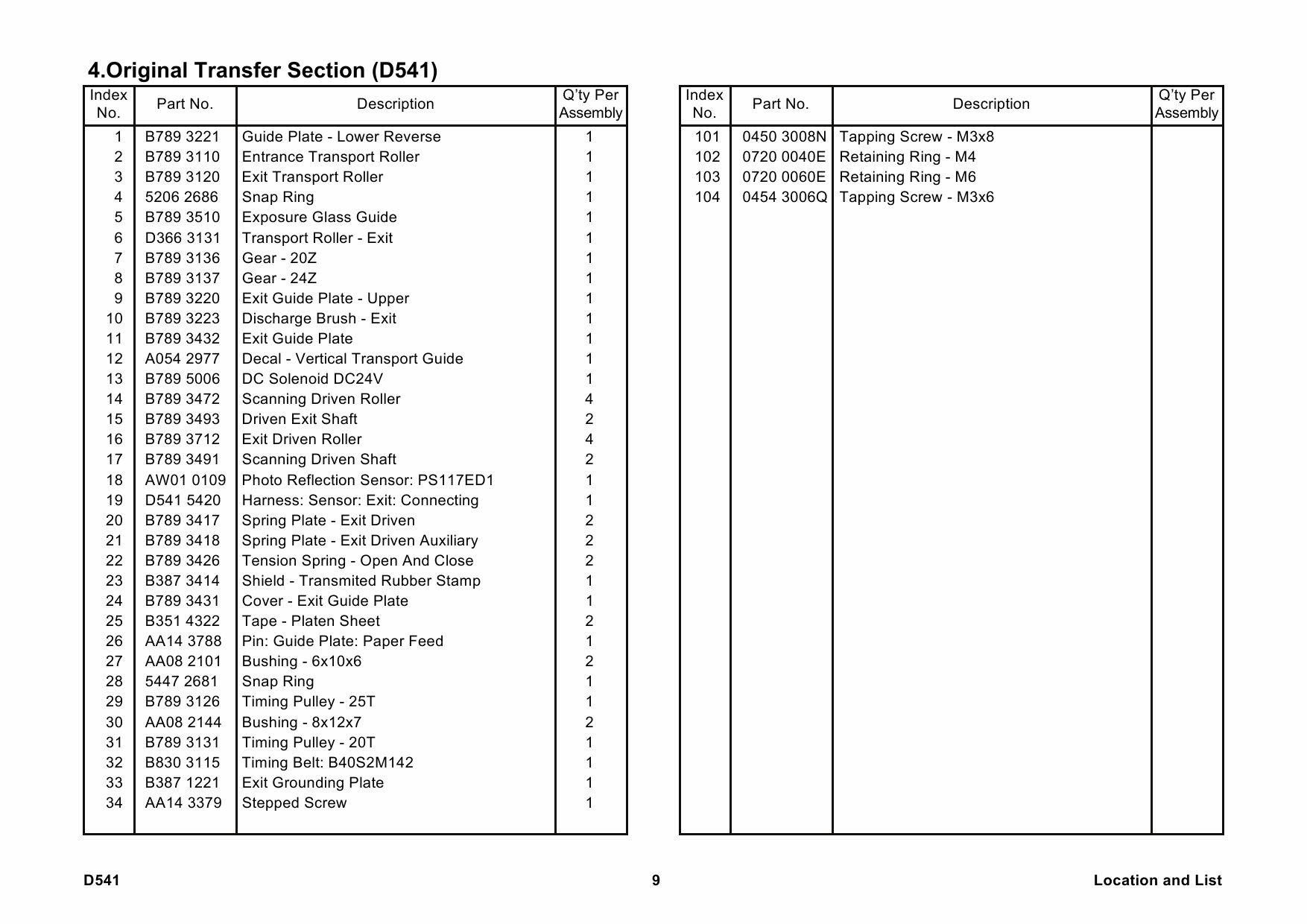

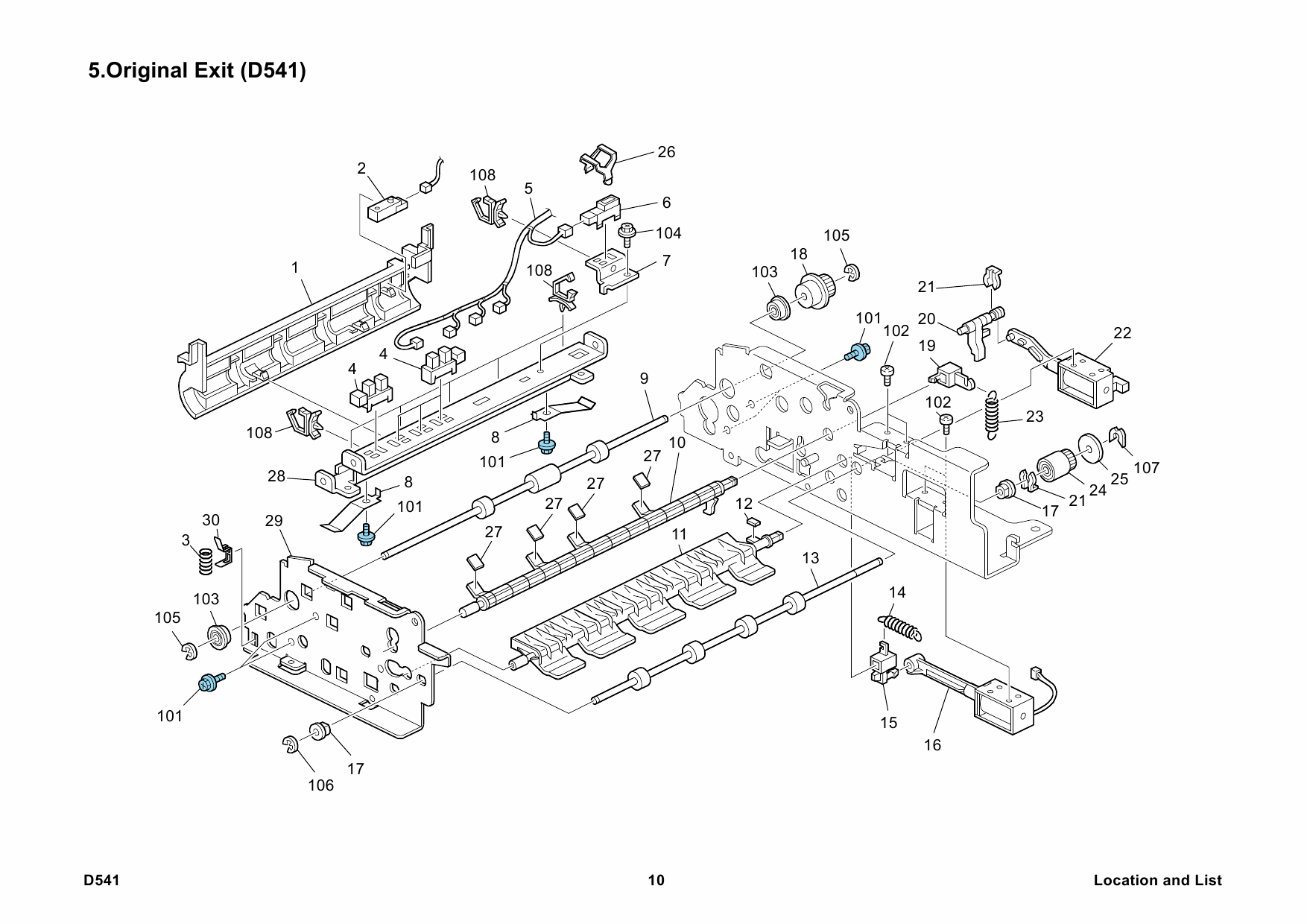

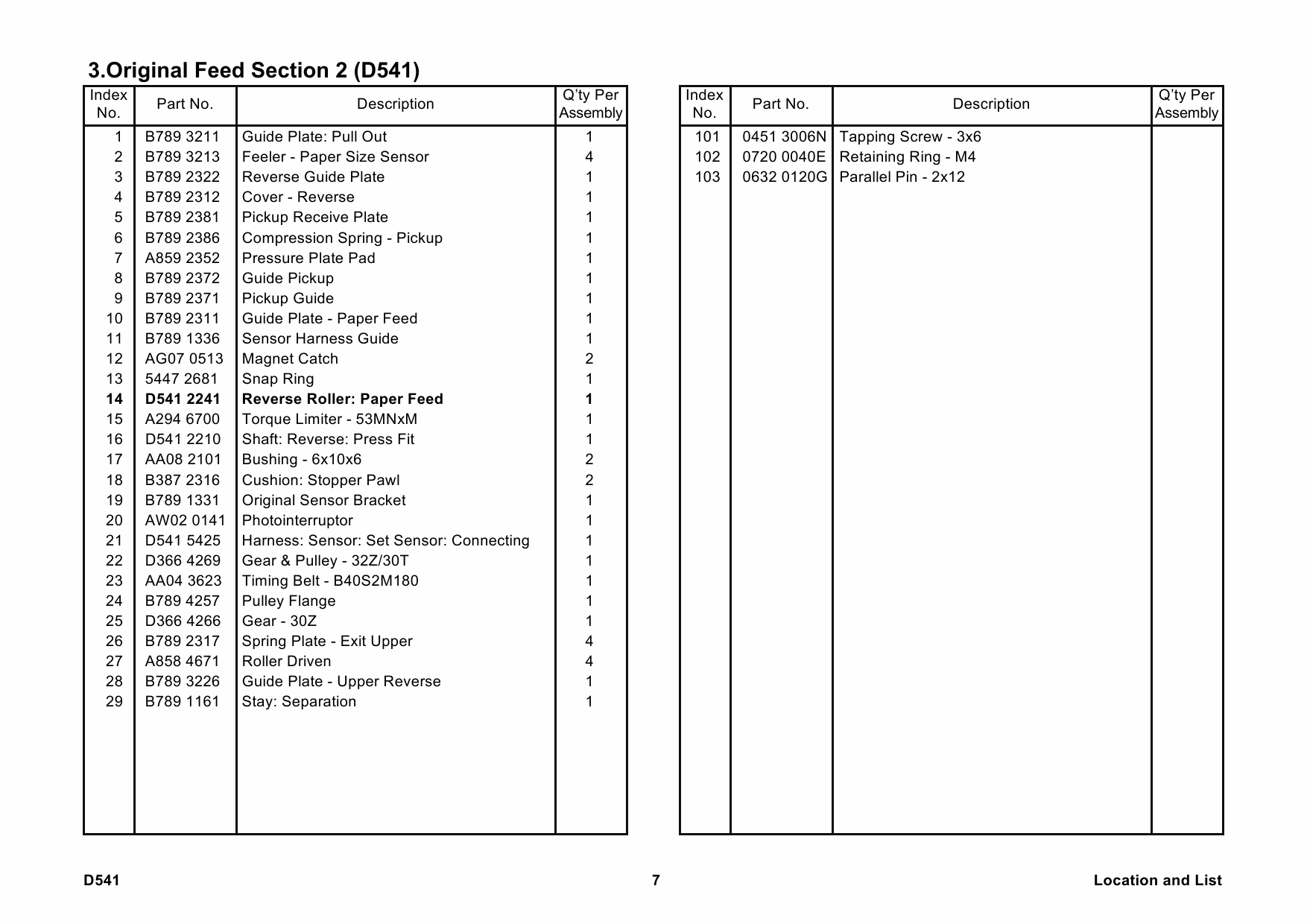

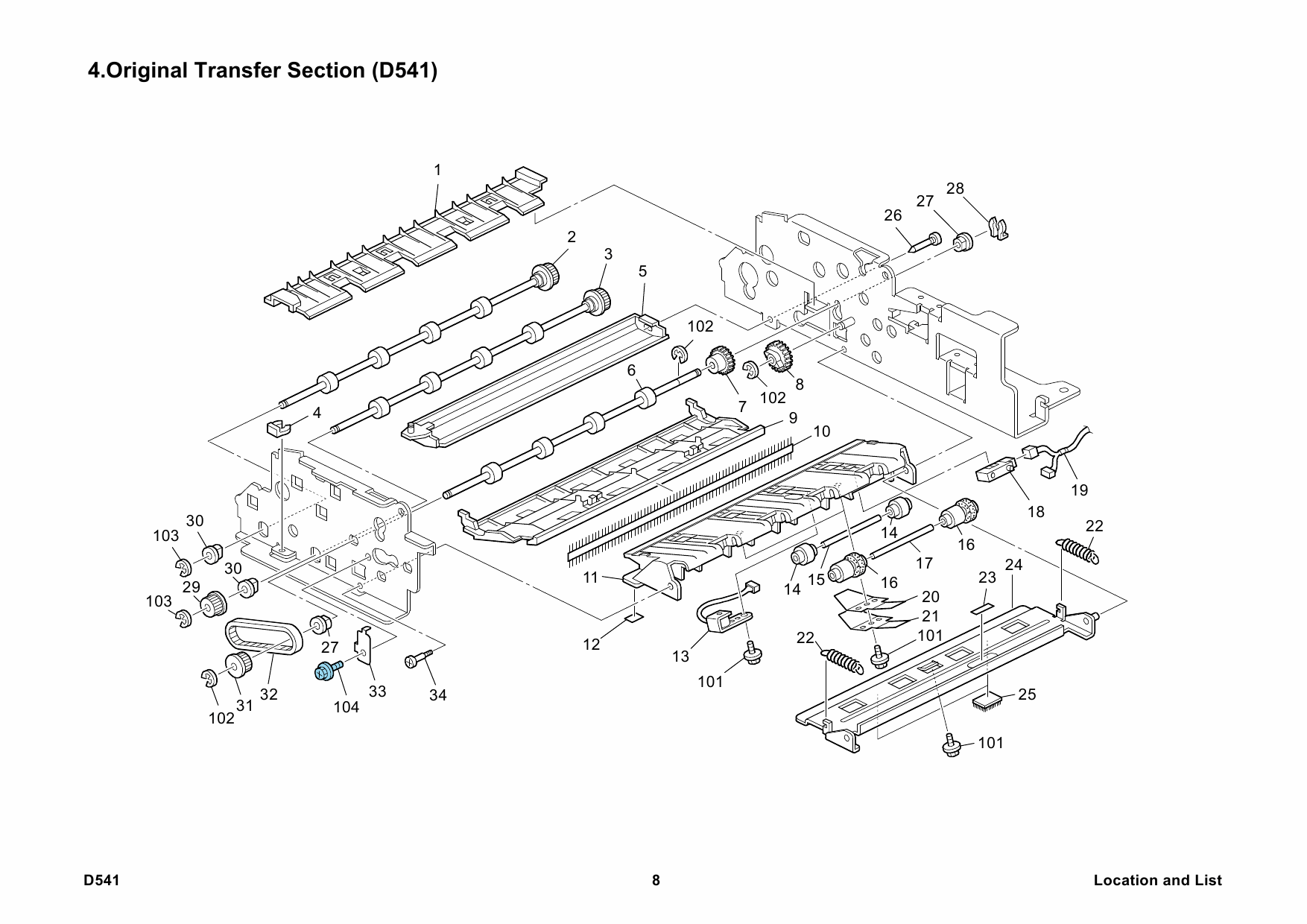

Page previews:
