Brother Inkjet-MFC J6520DW J6720DW J6920DW J6925DW Parts List Manual

Download immediately after payment PDF format service manual Allow high-definition printing

In stock

SKU
BR-J6520-PM
Links
$4.95

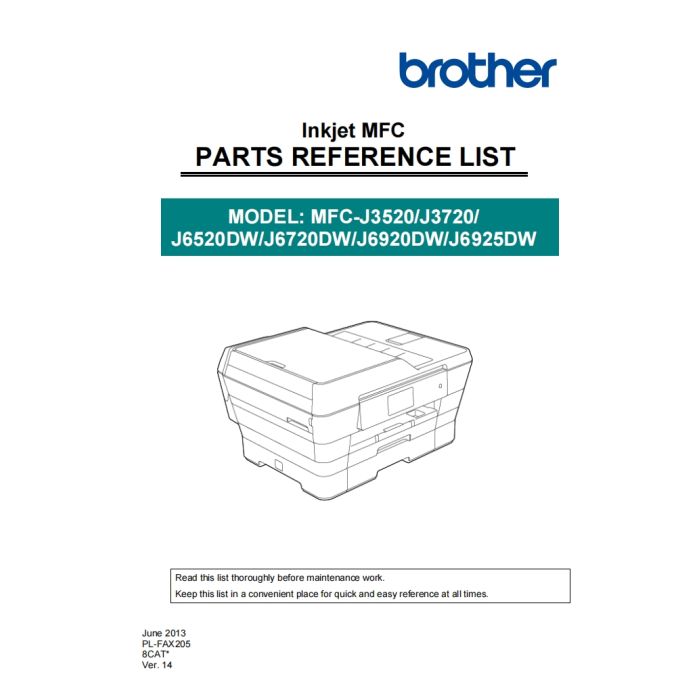

Description / Brother Inkjet-MFC J6520DW J6720DW J6920DW J6925DW Parts List Manual

CONTENTS
1.ADF ...................................................................................................... 1
2.DOCUMENT SCANNER ....................................................................... 3
3.CARTRIDGE CASE.............................................................................. 5

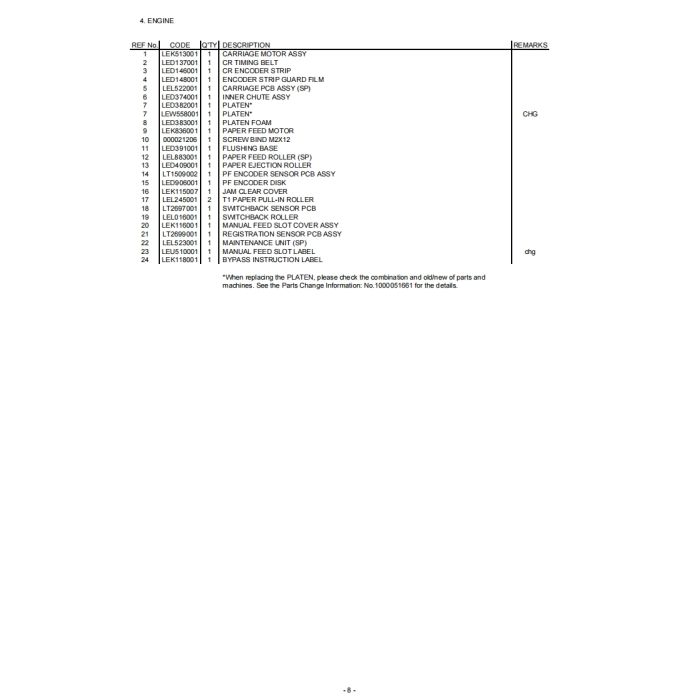

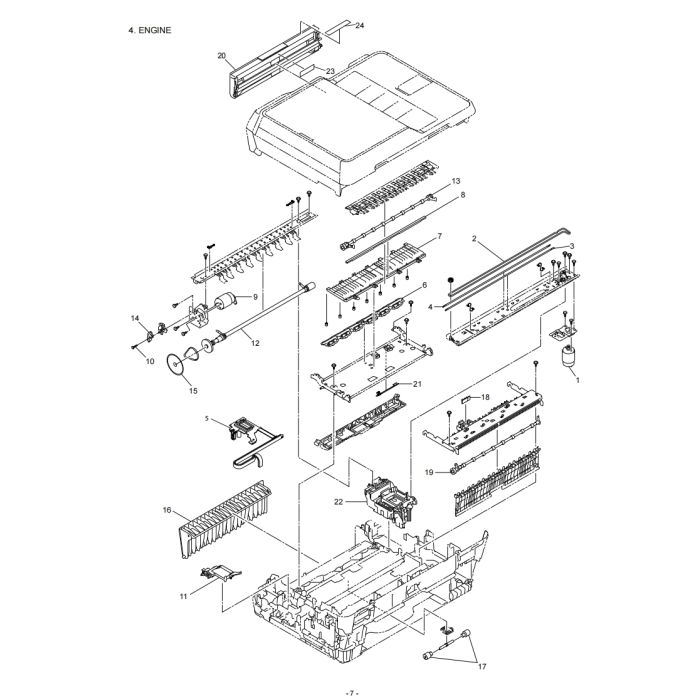

4.ENGINE ................................................................................................ 7
5.HEAD.................................................................................................... 9
6.PAPER TRAY..................................................................................... 11
7.LOWER TRAY.................................................................................... 13
8.COVERS & LABELS......................................................................... 15
9.PANEL................................................................................................ 17
10. PCB .................................................................................................... 19
11. ACCESSORIES .................................................................................. 21
12. PRINTED MATERIALS ....................................................................... 23
13. PACKING MATERIALS...................................................................... 26
14. OTHERS ............................................................................................. 28

More Information

BRAND EPSON
TYPES Parts_Manual
SIZE 1.66M
PAGES 32
FORMAT PDF
LANGUAGE English
QUALITY High resolution
VERSION 14
DOCDATE 2013-01-06 00:00:00
APPLIESTO Brother Inkjet-MFC J6520DW
Brother Inkjet-MFC J6720DW
Brother Inkjet-MFC J6920DW
Brother Inkjet-MFC J6925DW
